Description

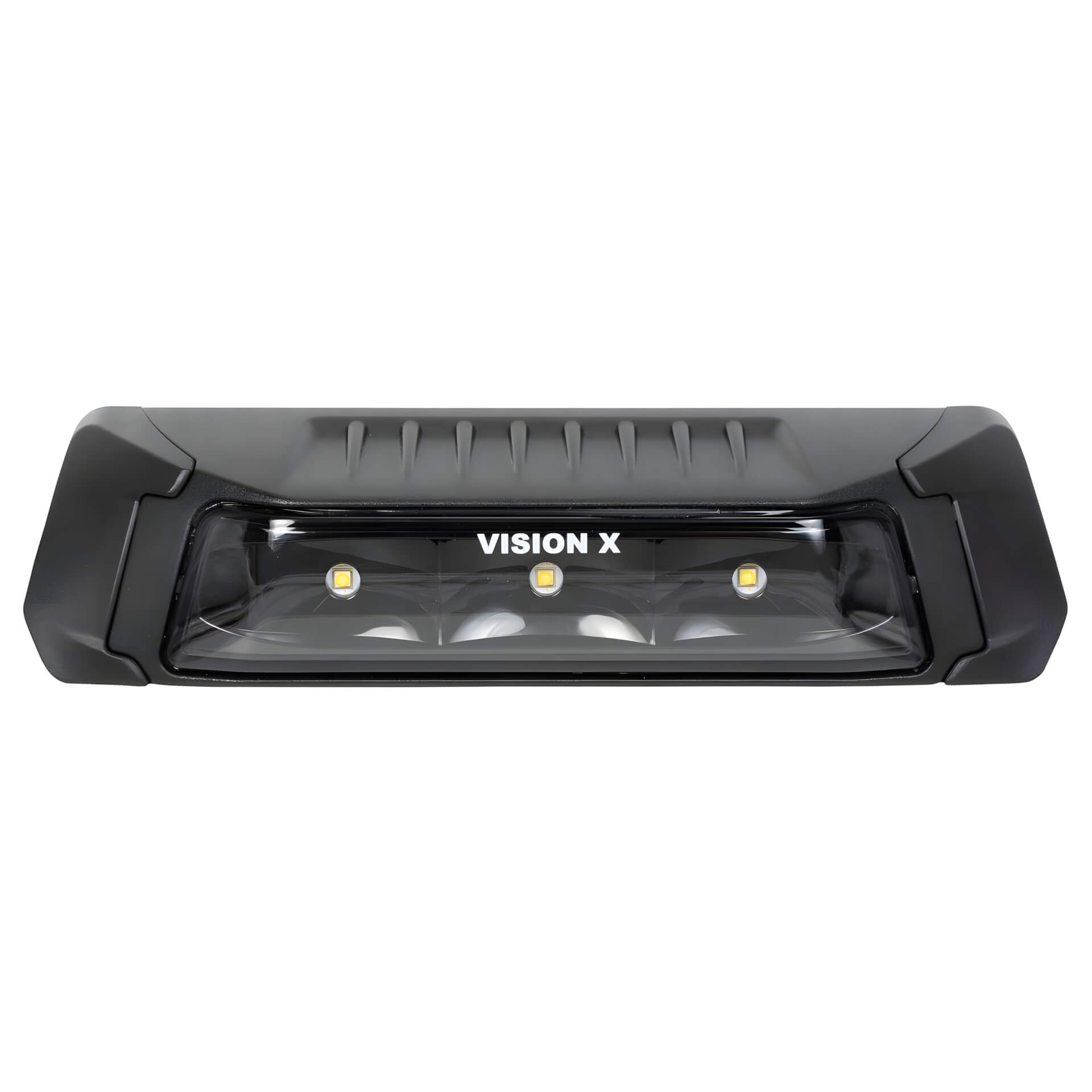

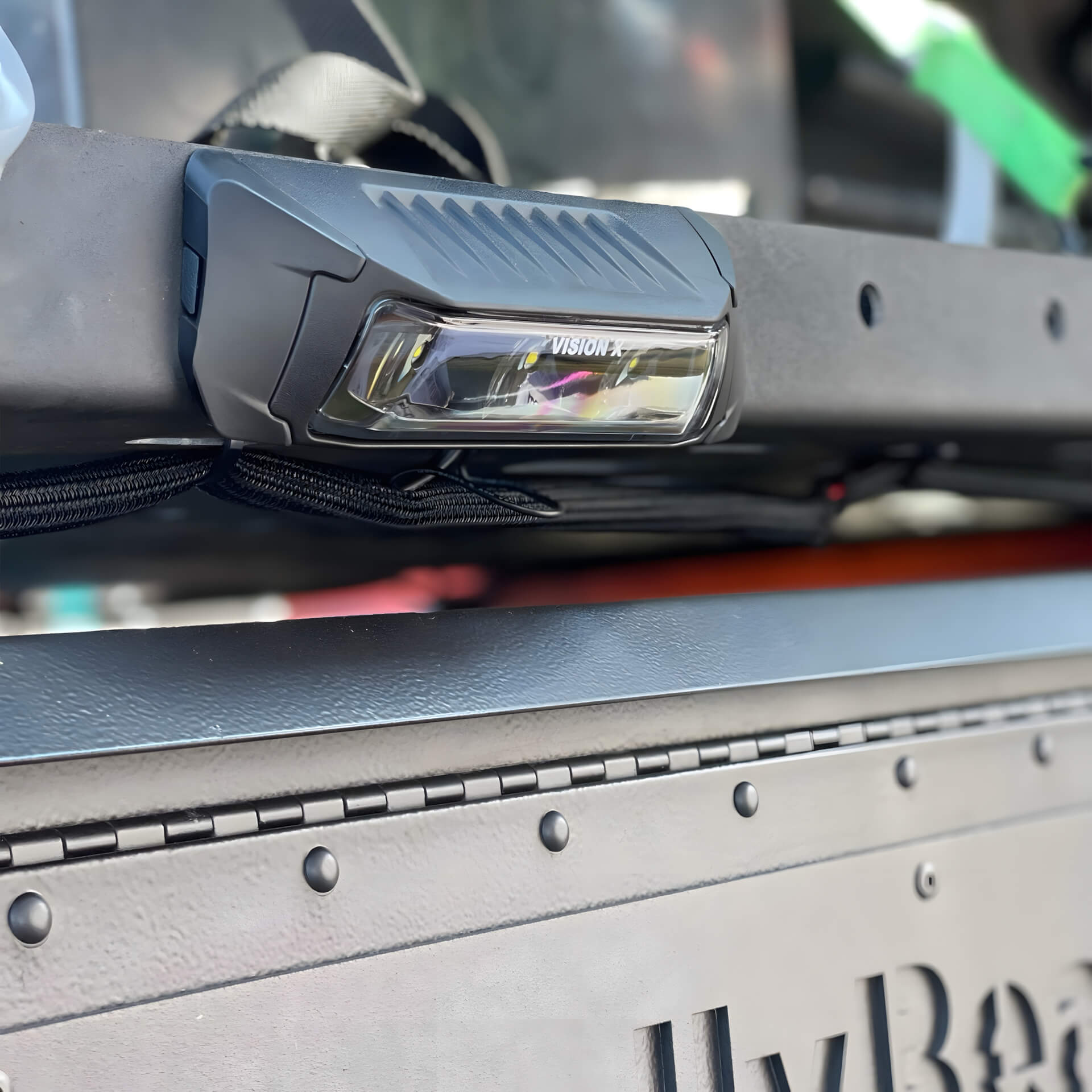

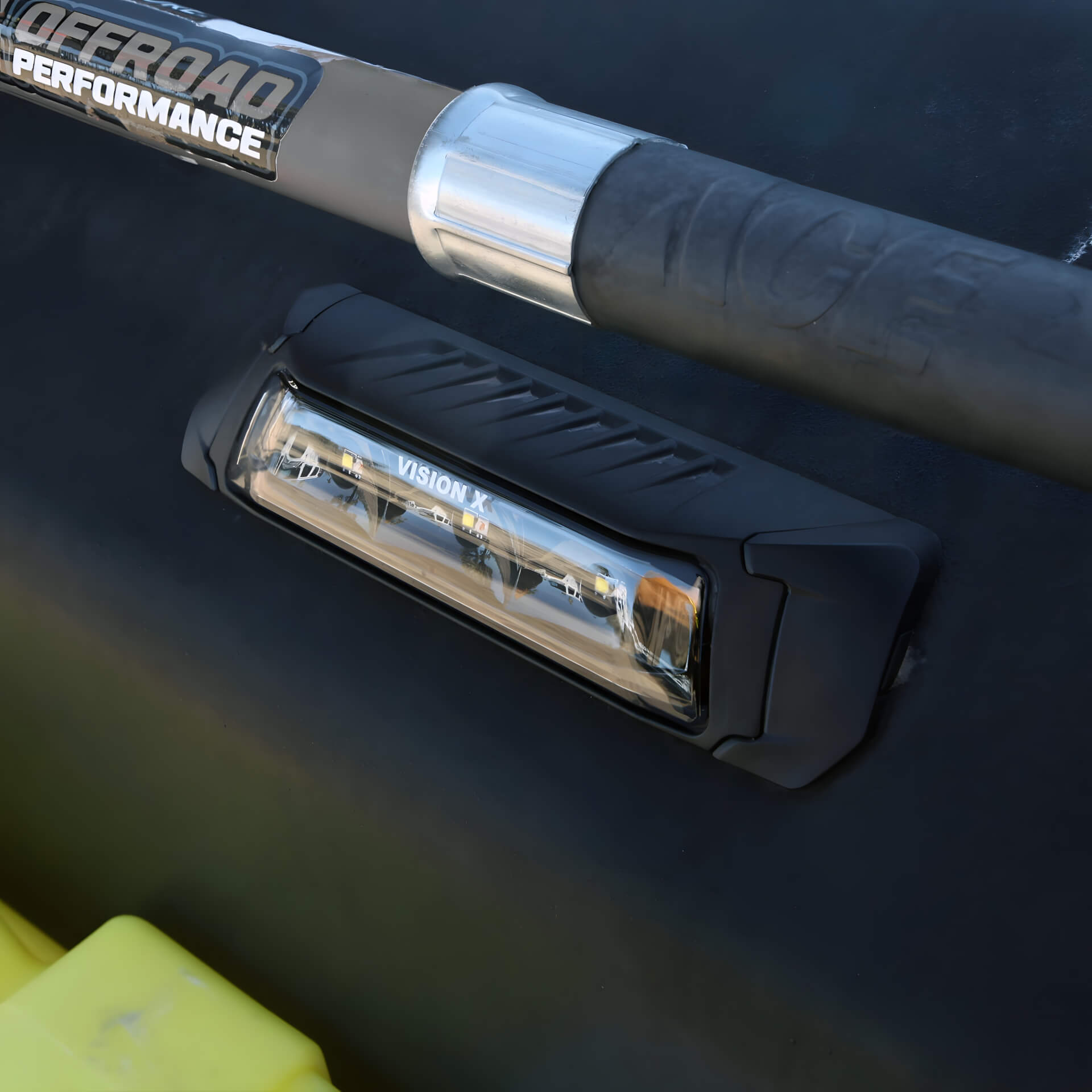

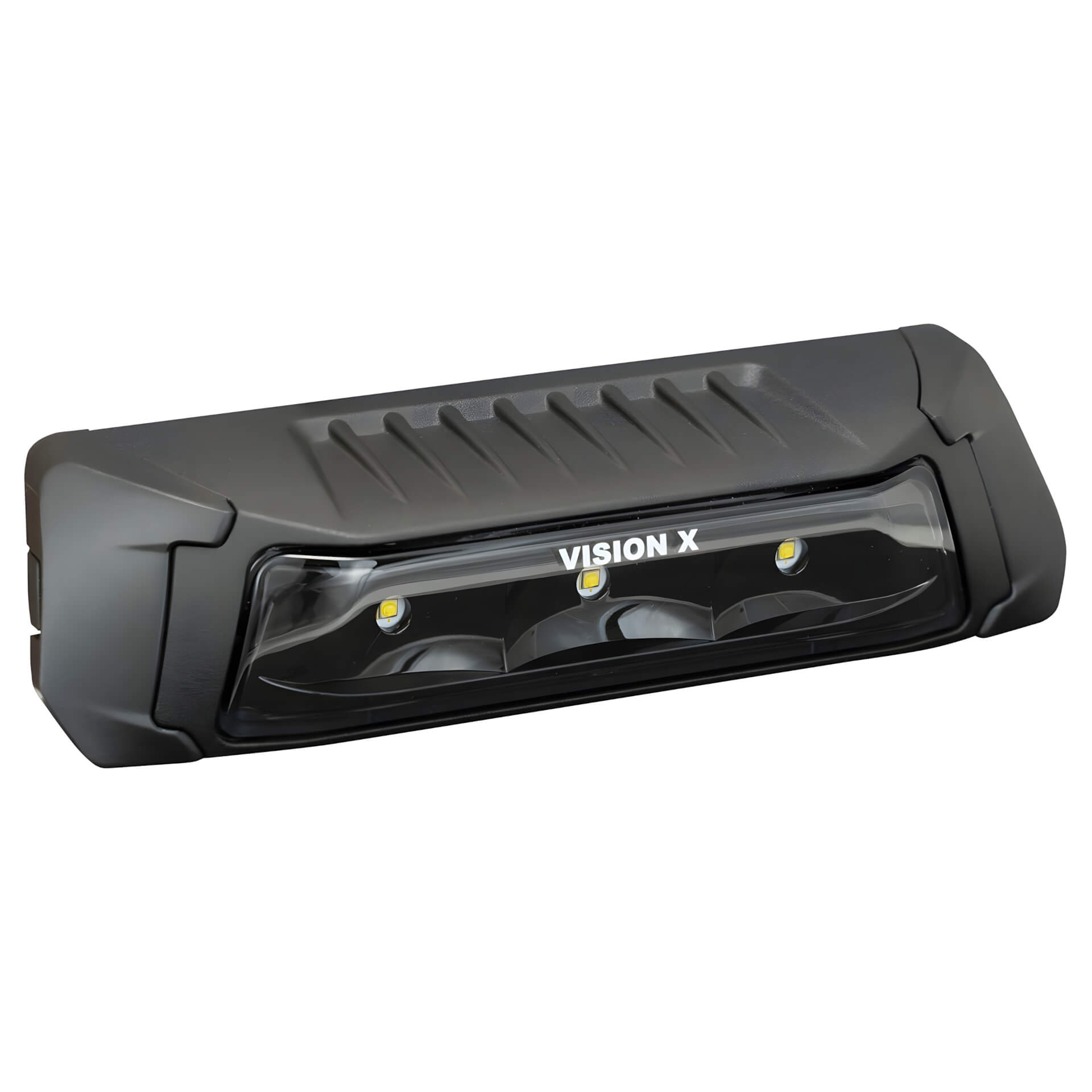

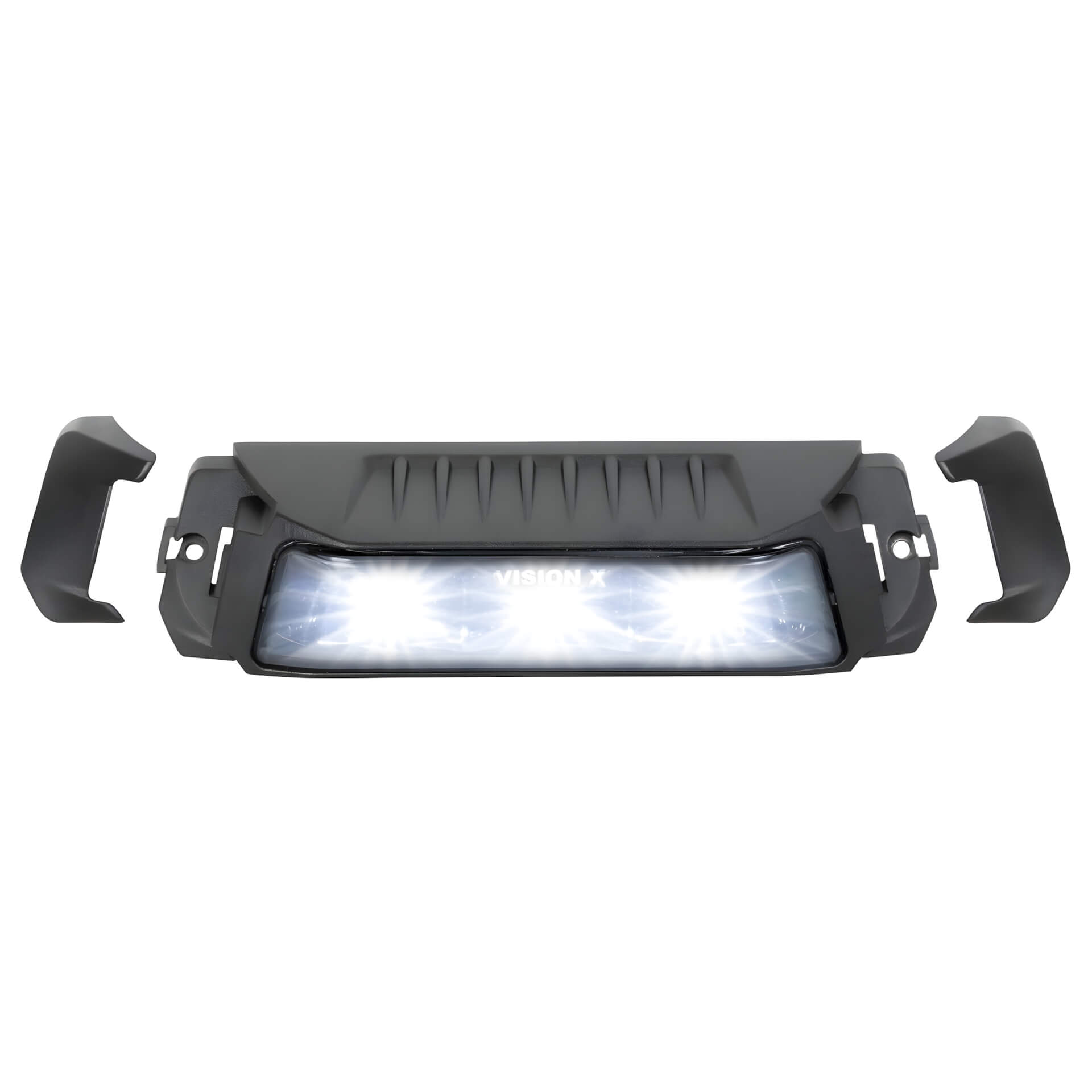

Vision X Scene Lights are high-efficiency accent and area lights primarily intended for fixed mounting on vehicles and trailers but also suitable for many other applications, such as marine vehicles, emergency vehicles, mining and construction. The lights have a low profile, with a recessed design, which makes them particularly suitable for vehicle mounting.

These lights have the highest level of RFI and ingress protection, so they are guaranteed not to take in water or interfere with radios or other technical equipment.

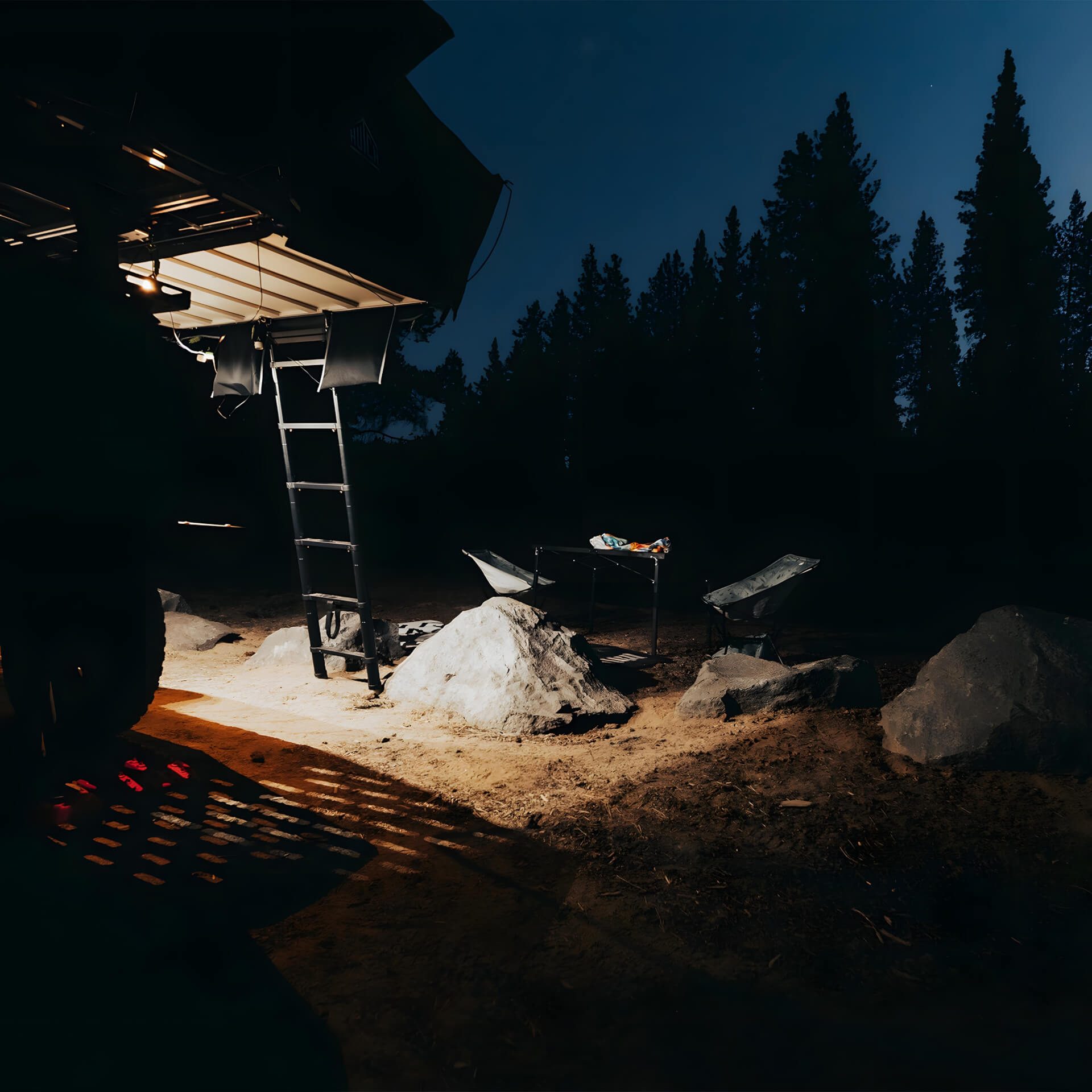

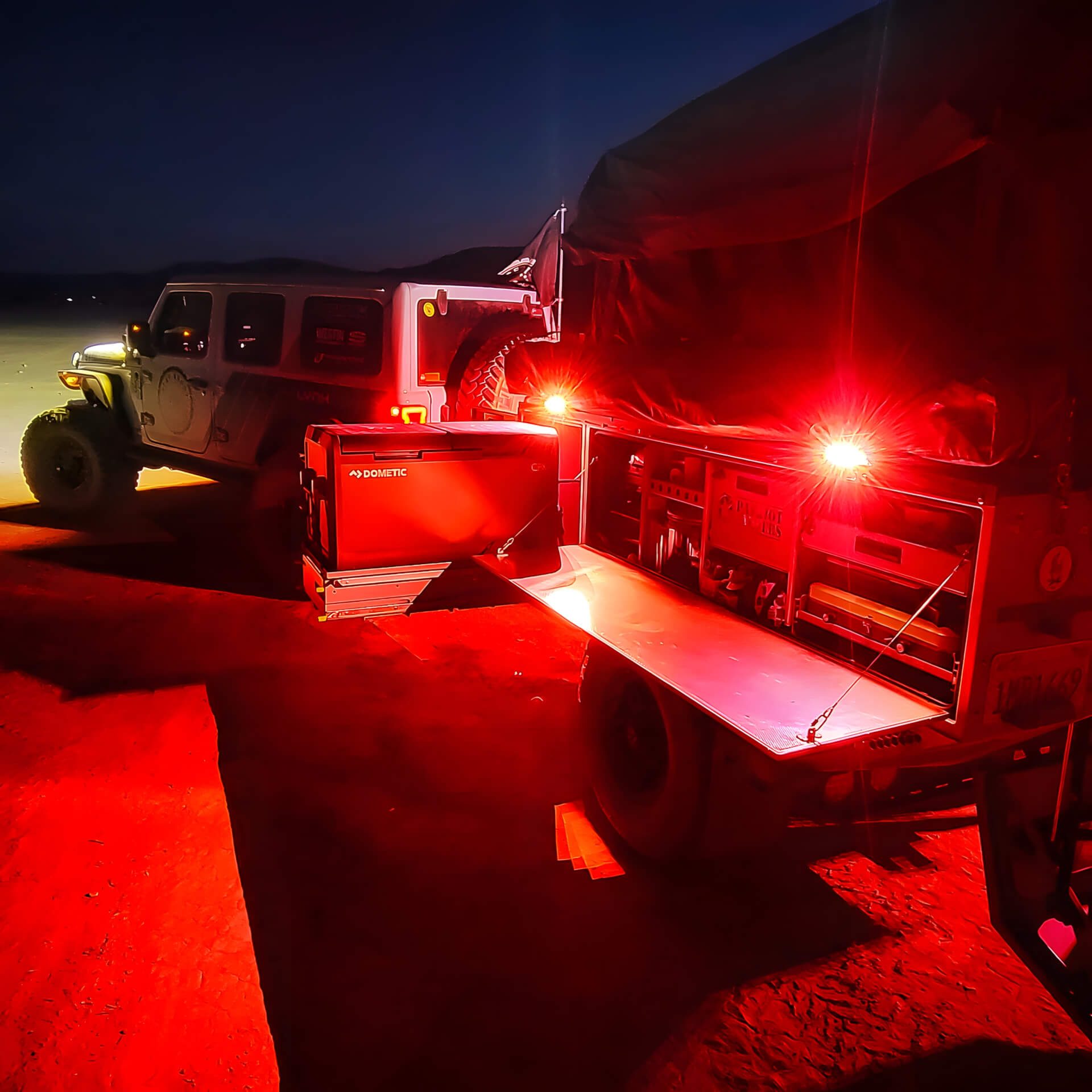

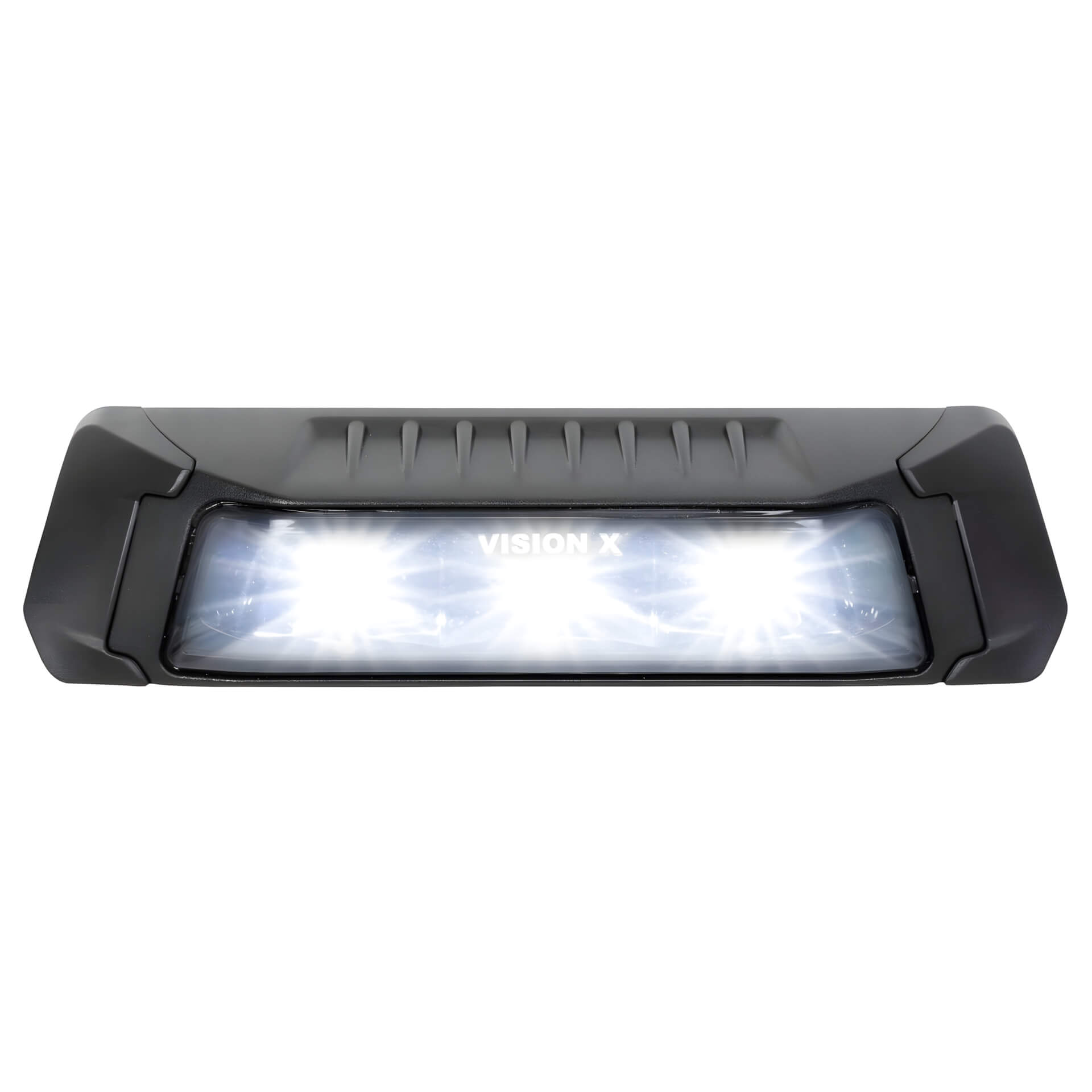

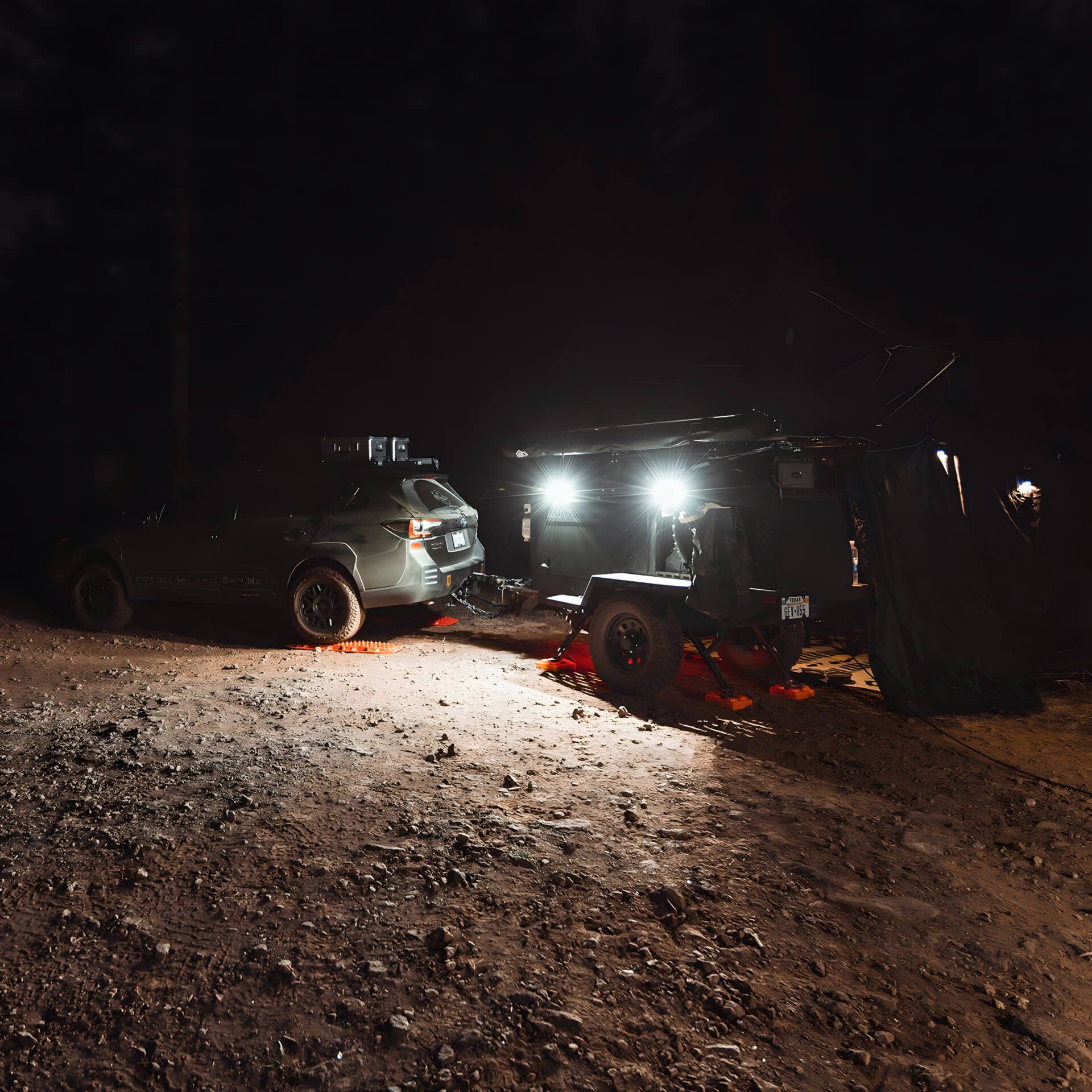

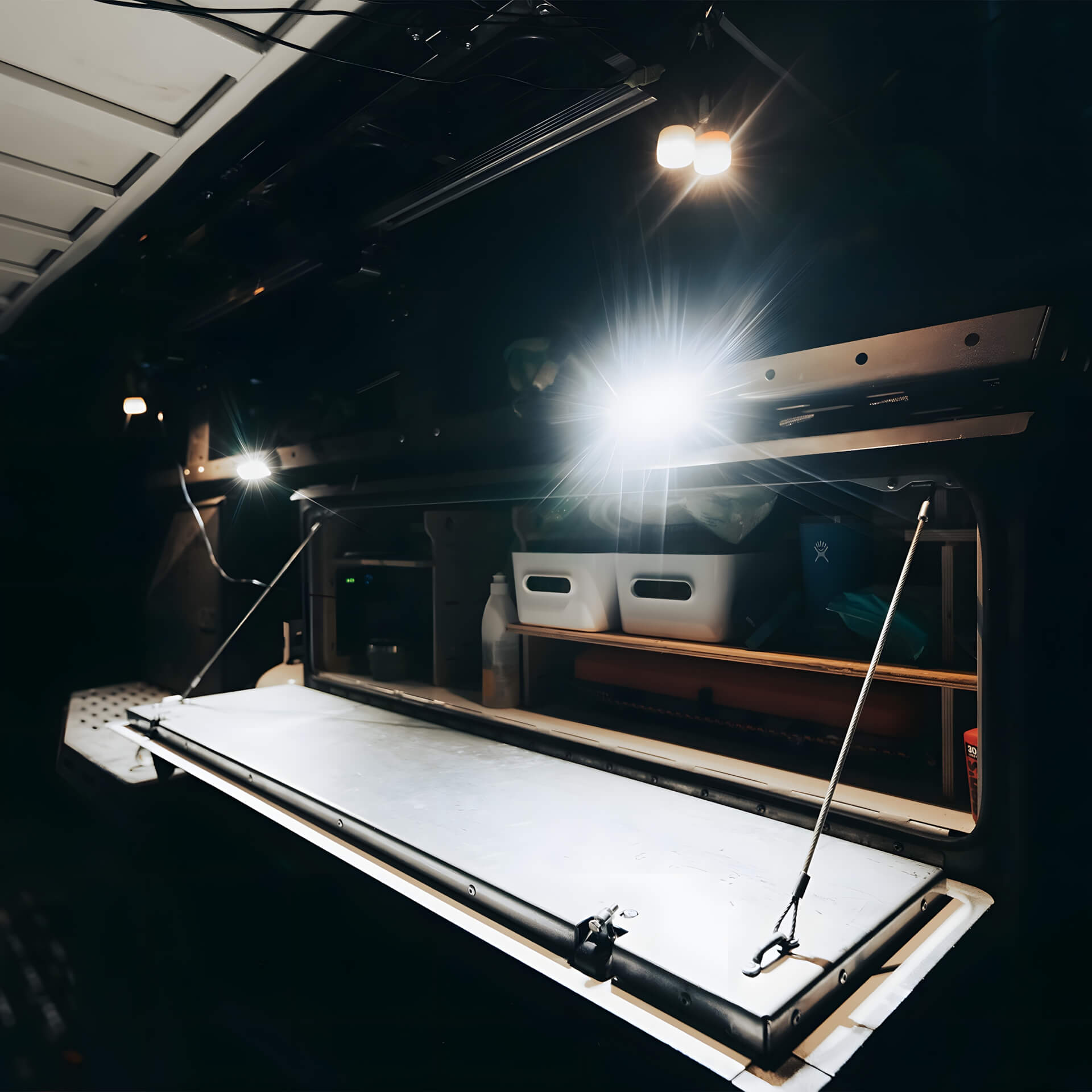

This version of the Vision X Scene Lights has a wide white light pattern with a 5700K light color temperature (a natural daylight), as well as a red light that is advantageous for use at night. The light is designed so that when surface mounted it provides the optimal angle for area lighting (40 degrees).

The lights are adapted for 9-32V voltage, which makes them suitable for all forms of automotive and marine applications. The die-cast housing in aircraft aluminum combined with a polycarbonate lens withstands the toughest of work environments.

Data:

• Lamp housing color: Black
• Light color: White or red
• LED: 3 x 3W LEDs
• Power: 9W
• Light color temperature: 5700K
• Raw lumens: 1,350
• IP class: IP68+IP69K
• Lens material: Polycarbonate
• Lamp housing: Aluminum
• Current consumption: 0.75A @ 12V
• Voltage: 9-32V
• Size:

  • Width: 187 mm
  • Height: 47 mm
  • Depth: 47 mm

• Weight: 816 grams
• Marking: ECE R10, CISPR 25 Class 3 RFI protection
• Warranty: 5-year functional warranty
