Description

Blacktips Marine LED work light series is developed and constructed to withstand the rough conditions on board. The latest Cree LEDs are used in a robust light housing and thanks to the CISPR 25: rating radio interference is prevented and other electronic components are unaffected. Screened off inside electronics prevents external corrosion.

Highest IP-rating – IP-69k (submersible down to 3 meters), 3m marine-graded power cable incl. deutsch connector.

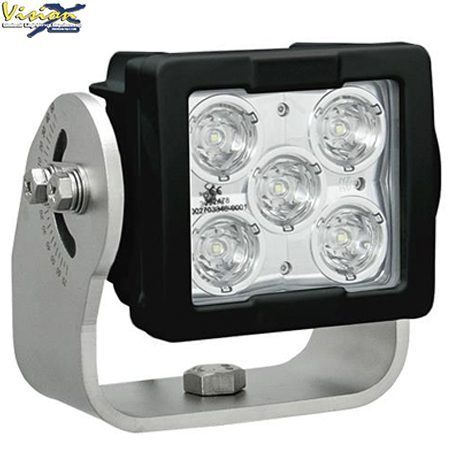

The Blacktips Marine LED work light series offers outstanding light output in a functional design utilizing a forward rake trunnion bracket, with integrated aiming markings on the sides and base of the bracket. Utilizing the aiming system in conjunction with 3d fit outs to ensure the correct light for any needs. Capable of standing up to 60G rms of intense vibrations in the harshest conditions, these lights are the perfect solution for replacing unreliable lights on your ship. There’s something comforting about being able to install a light and never have to worry about it.

Data:
LEDs: 5 x 7W Cree
Light Colour Temp: 6000K
Effective Lumens: 3305
Raw Lumens: 4000
Voltage: 11-65V
Current Draw: 2.9A @12V
Wattage: 35W
Connector: No connector. Open cable.
Bracket Type: Forward rake trunnion bracket with aiming system
Weight: 1.00kg
Width: 123mm
Height: 112mm
Depth: 101mm
IP Rating: IP69K
Vibration Dampened & Shock Proof: 60 Grms
EMC Approval: CISPR25 Klass 1/CE approved
Lens Material: Polycarbonate
Housing Material: Die-cast 6061 aluminum
Housing Coating: Marine Grade Anti-Corrosive
Light Patterns: 60° Euro (Also available in 10°, 25°, 40°).
